PACE Introduces 3 NEW Tip-Kits for the TD-200 Iron

PACE is happy to introduce 3 brand new Tip-Kits for the TD-200 Soldering Iron. A kit contains 7 Standard Tip-Heater Cartridges, each selected meticulously to provide you with the most effective set of tips for your type of work. The Tip-Kits specifically targets: micro-soldering, wave-soldering and general chip installation & rework. See which tip set works best for your application!

 TD-200 Micro-Soldering Tip-Kit (6993-0329)

TD-200 Wave-Soldering Tip Kit (6993-0330)

 TD-200 Chisel Tip Kit (6993-0331)

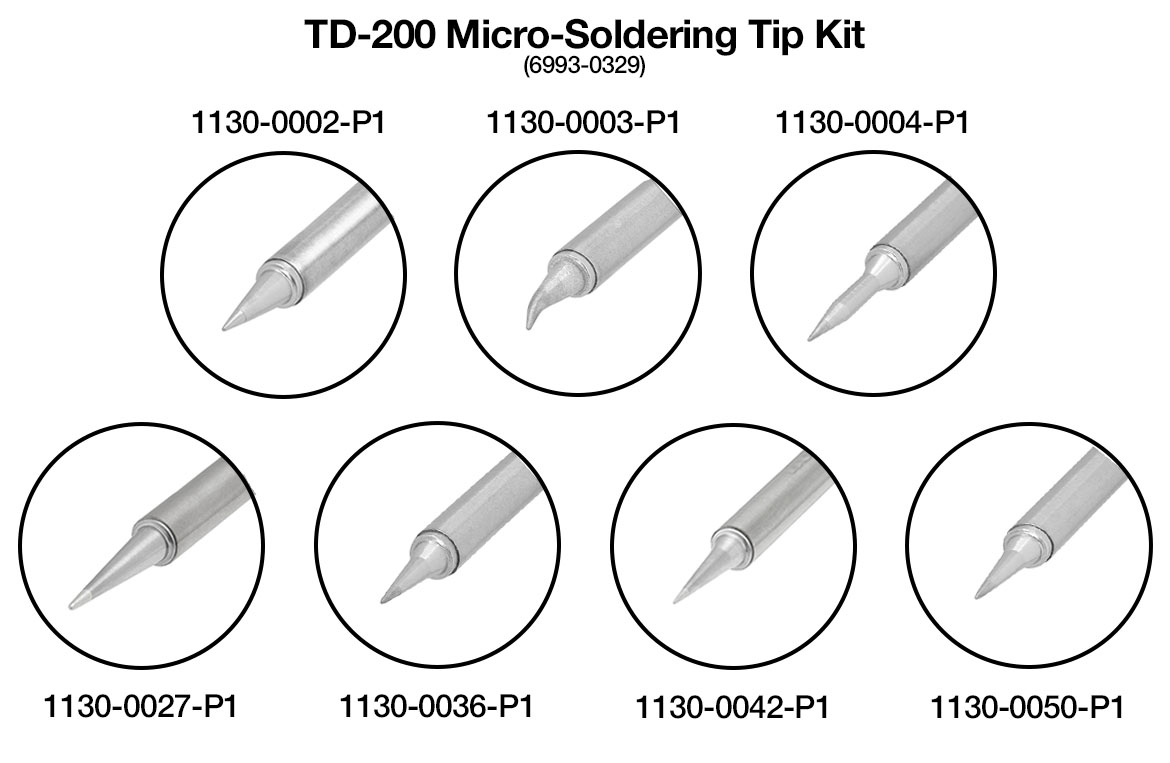

The Micro-Soldering Tip-Kit Includes:

1/64" Conical Sharp (0.40mm) (1130-0002-P1) 1/64" Conical Sharp Bent 30˚ (0.40mm) (1130-0003-P1) 1/64" Conical Sharp Extended (0.40mm) (1130-0004-P1) 3/128" Conical Sharp Tip (0.58mm) (1130-0027-P1) 1/128" Conical (0.20mm) (1130-0036-P1) MicroFine Conical Tip (0.25mm) (1130-0042-P1) 1/128" Conical Special (0.20mm) 1130-0050-P1

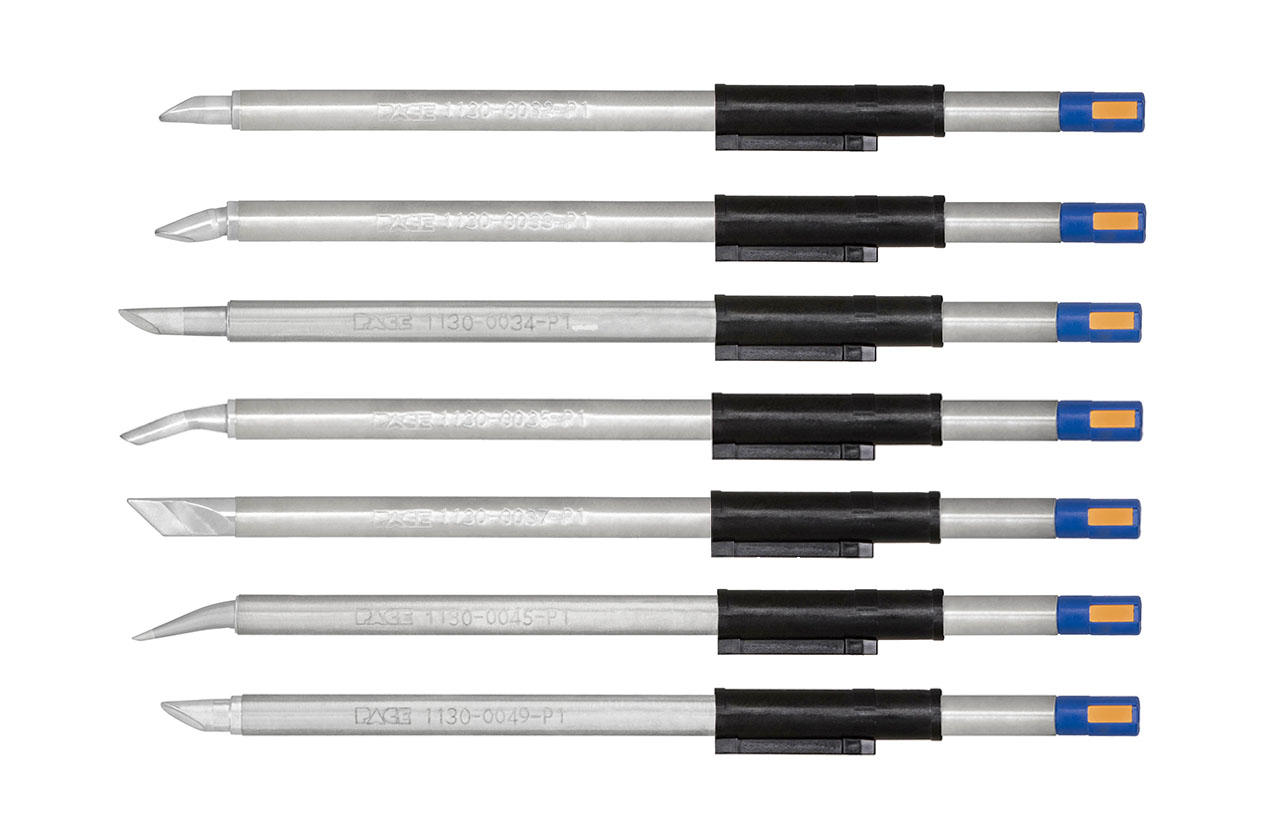

The Wave-Soldering Tip-Kit Includes:

Miniwave® (3.05mm) (1130-0032-P1) Angled MiniWave® (3.05mm) (1130-0033-P1) Single Sided Chisel Tip (3.05mm) (1130-0034-P1) Angled MiniWave Surface Mount Installation Tip (2.11mm) (1130-0035-P1) 1/4" Flat Blade (6.35mm) (1130-0037-P1) Angled Micro-Wave Tip (1.10mm) (1130-0045-P1) MINIWAVE® Special Tip (1130-0049-P1)

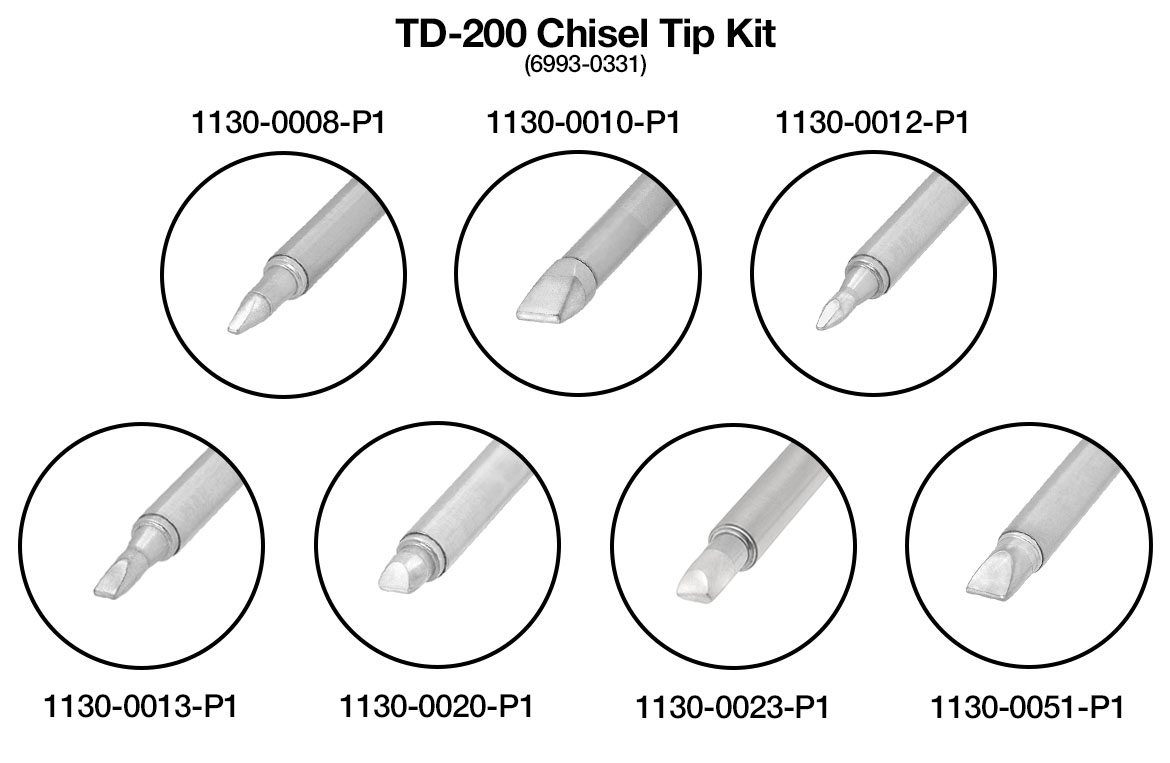

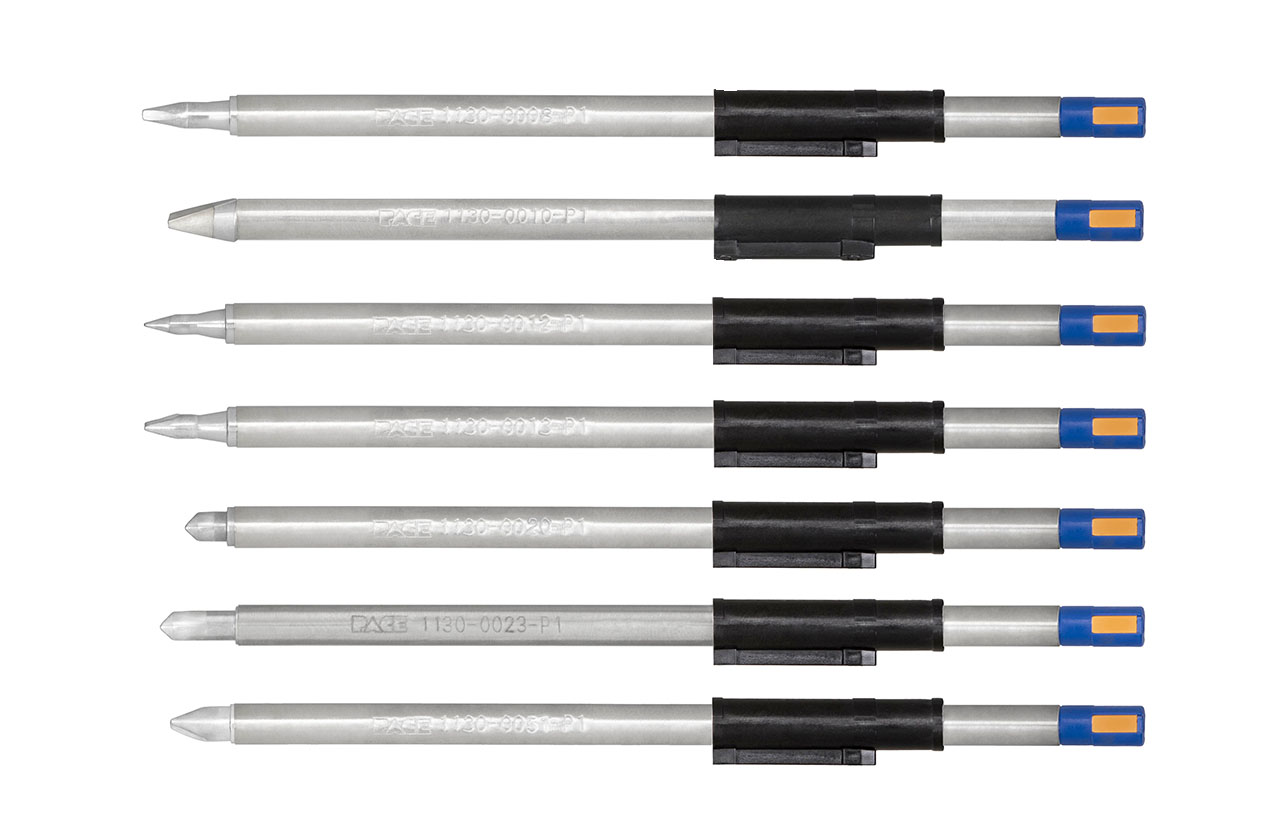

The Chisel Tip-Kit Includes:

3/64" 30˚ Chisel (1.20mm) (1130-0008-P1) 13/64" Extra Large Chisel (5.15mm) (1130-0010-P1) 1/32" 30˚ Chisel (0.80mm) (1130-0012-P1) 3/32" 30˚ Chisel (2.38mm) (1130-0013-P1) 1/8" 90 Chisel (3.18mm) (1130-0020-P1) 1/8" 90 Chisel Extended Tip (3.18mm) (1130-0023-P1) 5/32” 45° Chisel (4mm) (1130-0051-P1)
